Hii Guys,
    Welcome to very basic tutorial for MSP430 Launchpad. In this program i have simply toggled the pin and incremented one by one. I have used 5 Leds. You can use any controller provided in the Launchpad Kit. There is no restriction for any controller. I called it as the UP mode because all LED's will be on and the current one will be off. I am providing the PIN connections, Code I used and the Video.


PIN Connections:
P1.0 ---> Led1 second pin of (LED) to VCC
P1.1 ---> Led2 second pin of (LED) to VCC
P1.2 ---> Led3 second pin of (LED) to VCC
P1.3 ---> Led4 second pin of (LED) to VCC
P1.4 ---> Led5 second pin of (LED) to VCC

Code:
Click here to get this code

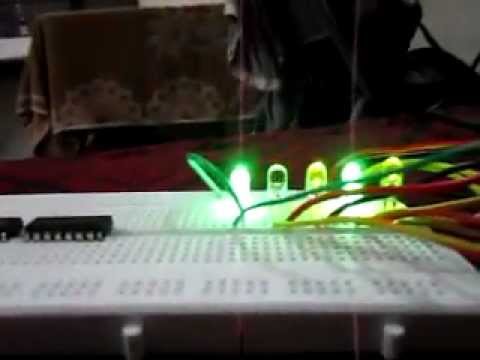

Youtube Video:

Feel free to ask any questions and suggestions using the comments sections.
